Description

Product SKUs

• SYS-E100-9W-C

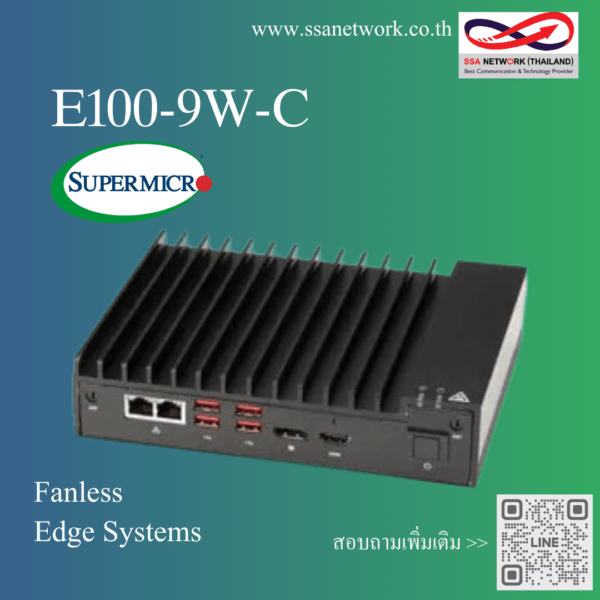

  • SuperServer E100-9W-C (Black)

Motherboard

• Super X11SWN-C-WOHS

Processor/Cache

• CPU
  • Intel® Celeron® Processor 4305UE
  • Single Socket FCBGA-1528
  • System-on-Chip
  • CPU TDP support 15W
  • Note BIOS version 2.0 or above is required

System Memory

• Memory Capacity
  • Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-2400MHz, in 2 DIMM slots
• Memory Type
  • DDR4 up to 2400MHz
• DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB
• Memory Voltage
  • 1.2V

On-Board Devices

• Chipset
  • System on Chip
• Network Controllers
  • Single LAN with Intel® I210IT
  • Single LAN with Intel® PHY I219LM
• Audio
  • ALC 888S HD Audio
• Video
  • Intel® UHD Graphics 620

Input / Output

• USB
  • 4 USB 3.1 Gen2 ports (Type A), 4 USB 2.0 (Type A)
• Video Output
  • 1 HDMI and 1 Display Port
• COM Port
  • 4 COM ports: 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control
• Audio
  • 1 HD Audio header
  • (Mic-in/Line-Out) (option)
• Others
  • 8-bit configurable GPIO via DB9

Chassis

• Form Factor
  • 3.5″ SBC
• Model
  • CSE-E101-02

Dimensions

• Width
  • 7.68″ (195mm) / 11.81″ (300mm) – pkg.
• Height
  • 1.73″ (44mm) / 5.12″ (130mm) – pkg.
• Depth
  • 5.94″ (151mm) / 11″ (279mm) – pkg.
• Weight
  • Gross Weight: 4.5 lbs (2.04 kg)
  • Net Weight: 2.65 lbs (1.2 kg)
• Available Colors
  • Black

Front Panel

• Buttons
  • Power On/Off button
• LEDs
  • Power LED and Hard drive activity LED

Expansion Slots

• M.2
  • Key: B-Key, M-Key, E-Key
  • M.2 2242/3042/2280
  • B-Key (1 USB 3.0/2.0, 1 SATA Gen3) with nano SIM holder

System Cooling

• Fans
  • Fan-less design

Power Supply

• • Lockable 12V DC 60W power adapter

System BIOS

• BIOS Type
  • AMI UEFI

Management

• Software
  • SuperDoctor® 5
  • Watch Dog
• Power Configurations
  • +12V ~ +24V DC Wide power range input
  • ACPI Power Management
  • Control of power-on for recovery from AC power loss
  • Force Power On by Jumper
  • CPU thermal trip support for processor protection

Operating Environment / Compliance

• RoHS
  • RoHS Compliant
• Environmental Spec.
  • Operating Temperature:
  • 0°C ~ 50°C (32°F ~ 122°F) with 0.7 m/s air flow
  • Non-operating Temperature:
  • -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
  • 8% to 90% (non-condensing)
    Non-operating Relative Humidity:
  • 5% to 95% (non-condensing)
  • Operational Vibration, IEC 60068-2-64, 5 Grms, random, 5~500 Hz, 1hr/axis
  • Operational Shock, IEC 60068-2-27, 30G, half sine, 11msThe use of industrial grade wide-temperature peripherals is required to meet 50°C
  • operating temperature.
