Description

Product SKUs

• SYS-E100-12T-C

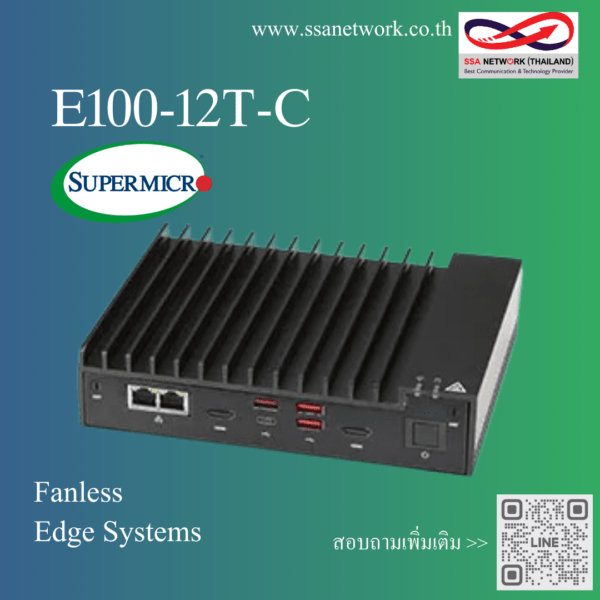

  • SuperServer E100-12T-C (Black)

Motherboard

• Super X12STN-C-WOHS

Processor/Cache

• CPU
  • Intel® Celeron® 6305E Processor
  • Single Socket FCBGA-1449
  • System-on-Chip
  • CPU TDP support up to 15W
• Note
  • BIOS version 1.1 or above is required

System Memory

• Memory Capacity
  • Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-3200MHz, in 2 DIMM slots
• Memory Type
  • DDR4 up to 3200MHz
• DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB
• Memory Voltage
  • 1.2V

On-Board Devices

• Chipset
  • System on Chip
• Network Controllers
  • Dual 2.5GbE LAN with Intel® I225-IT
• Audio
  • ALC 888S HD Audio
• Video
  • Intel® UHD Graphics

Input / Output

• USB
  • 3 USB 3.2 ports, 1 USB-C 3.2 port, 4 USB 2.0 ports
• Video Output
  • 1 HDMI 2.0b (4K60Hz), 1 HDMI 1.4b
• COM Port
  • 4 COM ports: 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control
• Audio
  • 1 HD Audio header
  • (Mic-in/Line-Out) [optional]
• Others
  • 8-bit configurable GPIO via DB9

Chassis

• Form Factor
  • 3.5″ SBC
• Model
  • CSE-E101-03

Dimensions

• Width
  • 7.68″ (195mm) / 11.81″ (300mm) – pkg.
• Height
  • 1.73″ (44mm) / 5.12″ (130mm) – pkg.
• Depth
  • 5.94″ (150mm) / 11″ (279mm) – pkg.
• Weight
  • Gross Weight: 4.5 lbs (2.04 kg)
  • Net Weight: 2.65 lbs (1.2 kg)
• Available Colors
  • Black

Front Panel

• Buttons
  • Power On/Off button
• LEDs
  • Power LED and Hard drive activity LED

Expansion Slots

• M.2
  • Key: B-Key, M-Key, E-Key
  • M.2 2242/3042/2280
  • B-Key (1 USB 3.0/2.0, 1 SATA Gen3) with nano SIM holder
  • E-Key (CNVi/PCI-E 3.0 x1/USB2) M.2 2242/2280
  • M-Key (PCI-E 4.0 x4), NVMe support

System Cooling

• Fans
  • Fan-less design
• Power Supply
  • Lockable 12V DC 84W power adapter

System BIOS

• BIOS Type
  • AMI UEFI

Management

• Software
  • SuperDoctor® 5
  • Watch Dog
  • vPro
  • AMT
• Power Configurations
  • +12V ~ +24V DC Wide power range input
  • ACPI Power Management
  • Control of power-on for recovery from AC power loss
  • Force Power On by Jumper
  • CPU thermal trip support for processor protection

Operating Environment / Compliance

• RoHS
  • RoHS Compliant
• Environmental Spec.
  • Operating Temperature:
  • 0°C ~ 50°C (32°F ~ 122°F) with 0.7 m/s air flow.
  • The use of industrial grade wide-
  • temperature peripherals is required to meet 50°C operating temperature.
  • Non-operating Temperature:
  • -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
  • 8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
  • 5% to 95% (non-condensing)
  • Operational Vibration, IEC 60068-2-64, 5 Grms, random, 5~500 Hz, 1hr/axis
  • Operational Shock, IEC 60068-2-27, 30G, half sine, 11ms
