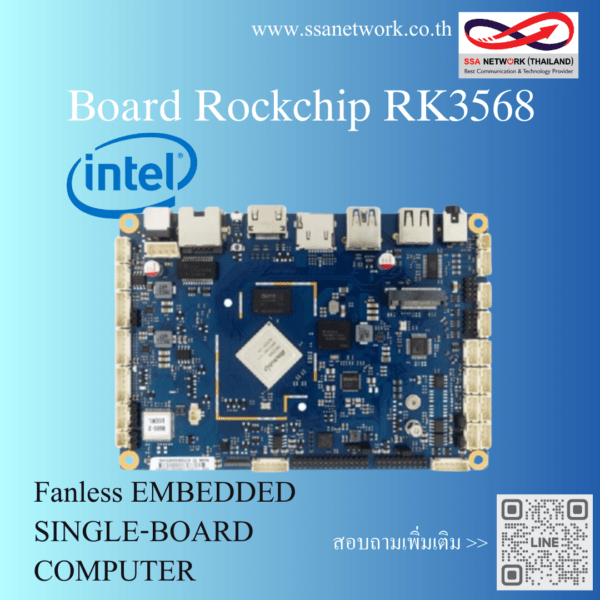

Description

CPU

• RK3568 Quad-core Cortex-A55 up to 2.0GHz

Display

GPU

• ARM Mali-G52

Interface

• 1 x HDMI Type-A
• 1, 30 Pin, 2x 15PIN LVDS Port
• 1, 20 Pin, 2x 10PIN eDP Port
• 1, 31 Pin, FPC MIPI DSI Port

Memory

Type

• 2GB/4GB LPDDR4/4X optional

System

OS

• Android 11, Debian 10

Storage

Type

• Onboard 8GB EMMC (optional 16/32GB)

Audio

PMU

• HD Audio IC, RK809-5

Interface

• 1 x 3.5mm Auido jack: Line out with mic; Amplifier:
• 5W/4Ω x2
• 1 x Mic in (1*2pin 2.0mm wafer), 1 x Speaker(1*4pin 2.0mmwafer)

Network

LAN

• 1 x 10/100/1000Mbps, RTL8111H

Wireless

• Onboard 2.4G WIFI+BT4.2 / 2.4G&5G WIFI+BT4.2

I/O

USB

• IO: 1 x USB2.0, 1 x USB3.0, Internal: 7 USB2.0

COM

• 2 x RS232 Support 5/12V optional (4pin header)
• 2 x RS232/TTL optional 5V (4pin header)
• 2 x RS232/RS485/TTL optional 5V (4pin header)

Extension

• 1 x M.2 for 4G/5G mobile network module
• 1 x TF Slot
• 1 x Micro SIM Slot
• 1 x TP-I2C (1*6pin 2.0mm wafer)
• 2 x GPIO header (1*6pin 2.0mm wafer) support 7GPIO, 1 ADC
• 1 x IR header (1*4pin 2.0mm wafer)
• 1 x LED header (1*4pin 2.0mm wafer)
• 1 x CAN header (1*4pin 2.0mm wafer)
• 1 x Cash Box header (1*4pin 2.0mm wafer)
• 1 x POWER header (1*2pin 2.0mm wafer)
• 1 x 12V DC IN header (1*4pin 2.54mm wafer)

Power

Input

• 12V DC input

Size

L X H

• 146mm x 102mm

Environment

Working Condition

• -5~50℃, 10%~90% non-condensing

Storage Condition

• -20~70℃, 5%~90% non-condensing
