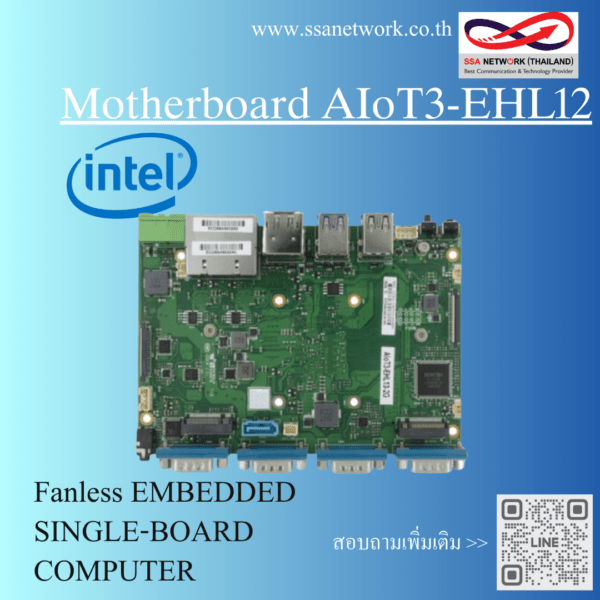

3.5inch Embedded Motherboard AIoT3-EHL12

Description

Model
  • AIoT9-H110
Type
  • Micro ATX Industrial Motherboards
Processor
Chipset
  • Intel® H110 Chipset, Option C236 for E3 V5&V6
CPU
  • Support Intel LGA1151 Gen.6/7/8/9th i3/i5/i7/i9/Pentium/Celeron CPU
Memory
Socket
  • H110 support 2×288Pin DDR4, C236 support 4×288Pin DDR4 DIMM up to 64GB
Graphics
Controller
  • Intel HD Graphics (Depends the CPU)
Display
  • Supports Triple display of DVI-D+VGA+HDMI, C236 support Independent triple display
Storage
Type
  • H110 support SATA, C236 support 5 SATA3.0 port Support SATA Raid 0/1/5/10
  • 1 M.2 2280 (SATA3.0 bus) SSD
  • Network
Ethernet
  • Dual intel GbE Ethernet ports, LAN1: Intel I219LM, LAN2: Intel I211AT
I/O
TPM Interface
  • Support 1 x TPM interface, extensible TPM module
Audio
  • Support Mic-in, Speaker-out
  • USB 4 USB3.0 Type A Rear I/O, 2 USB3.0 pin header inside
  • 2USB2.0 Type A Rear I/O, 1 USB2.0 Type A inside for USB Dongle
  • 2 USB2.0 pin header inside for front I/O (C236 support 6 USB2.0)
LPT
  • 1 x LPT port
COM
  • 6 COM (Scalable 10 COM), COM1 support RS232/422/485, COM2-6 support RS232
KB/Mouse Connector
  • 1×PS/2 2 in 1 Connector & 2 x USB 3 in 1 Connector
Digital I/O
  • 8-bit Digital I/O
LPC Interface
  • Support 2 x 6 Pin LPC bus, extensible COM module, etc.
Power
Input
  • ATX power supply, support ATX/AT mode
Expansion
Interface
  • 1 x PCIe x16, 1 x PCIe x4 slot
  • 2 x PCI slot (32bit)
  • 1 x M.2 2280 Slot support SATA SSD
Environment
Temperature
  • Operating: 0~60℃, Storage: -40~80℃
Humidity
  • 5% to 95%, Non-condensing
System
BIOS
  • AMI UEFI BIOS
Operating System
  • Win7/Win10/WES7/Linux, 32bit/64bit
Function
WatchDog
  • Software programmable 1~255 second/minute system interrupt/reset
PCB
Color
  • Industry green
Dimensions
  • 244mm X 244mm
